We are excited to announce that the Report Designer supports an indicator report item as of the 2019 December Bold Reports release.

Indicators are minimal representations of gauges that visualize the state of particular data at a glance. They’re mostly used inside tables to represent state values of key performance indicators (KPIs). In Bold Reports, we have provided circle, shape, arrow, box, quarter, signal meter, star, symbol, sign, traffic light, triangle, button, and smiley indicators with the Report Designer. Some of the indicators are shown in the following screenshot:

Indicator shapes
Indicator shapes

In this blog, we are going to design a report that analyzes customer support representative details with respect to average response turnaround time. We will then visualize the state of response times using smiley indicators with the following conditions:

IconColorIndicator States
StartEnd
Face SmileGreen04
Face NeutralYellow48
Face FrownRed812

Now, we are going to walk through creating an indicator report using the Bold Report Designer.

Synopsis:

  1. Create a new report.
  2. Configure the data source and create a data set.
  3. Display the customer representative details in a table.
  4. Create indicator report item to display the state of response times.

Let’s dive into creating the indicator report.

Create a new report

First, navigate to the Syncfusion Bold Report Designer, which will create an empty report for us to build on. Now, click the New icon and provide a report name to create a new report, or you can proceed with the empty report.

Create new report option
Create new report option



Create new report dialog
Create new report dialog

Configure data source

For this blog, we are going to use our existing Customer Representative SQL data source to create the report.

  • Click the Data icon in the configuration panel.



Report Designer data panel
Report Designer data panel
  • In the DATASOURCES panel, click the Add New Datasource button on the bottom of the panel.
Add new data-source connection option
Add new data-source connection option
  • In the DATASOURCES configuration panel, choose the desired data-source type. Here, we are going to use the SQL connection type.
 SQL connection type
SQL connection type
  • In the new connection panel:
    • Click the Advanced Options navigation button.
Data-source connection advanced option button
Data-source connection advanced option button
  • In the Name field, specify the data source name CustomerSupportRepresentative without any special characters.
  • Use your own connection string to connect the existing available database:
Data Source=demodata;Initial Catalog=DemoDB;user id=demouser;password=demopassword
  • In the Authentication Type field, choose None.
create-new-data-connection
Create New Data Connection
  • Now, click the SAVE button to establish the connection with the SQL database.

Create data set

Now, the data source is ready and we are going to create the data set for table report item design.

  • Click the Data icon in the configuration panel.
  • In the DATASOURCES panel, click the hamburger icon next to CustomerSupportRepresentative data source, and then click Create DataSet. This will navigate to the query designer.
Create DataSet option
Create DataSet option
  • In the query designer, navigate to the SQL query editor by toggling the Code option.
Switch to SQL query
Switch to SQL query
  • Use the following SQL query to extract the customer representative name and average turnaround time details from the database.
SELECT

[dbo].[CustomerSupportAnalysis20151029182232538].[RepresentativeName] AS [Representative Name],Round(Sum((([dbo].[CustomerSupportAnalysis20151029182232538].[DurationTime])/NULLIF(( CASE WHEN [dbo].[CustomerSupportAnalysis20151029182232538].[Status]='Closed' THEN 1 ELSE 0 END ),0))*1.0)/Count(([dbo].[CustomerSupportAnalysis20151029182232538].[DurationTime])/NULLIF(( CASE WHEN [dbo][CustomerSupportAnalysis20151029182232538].[Status]='Closed' THEN 1 ELSE 0 END ),0)),1) AS [Average Resolution Time]

FROM

[dbo].[CustomerSupportAnalysis20151029182232538] Group by [dbo].[CustomerSupportAnalysis20151029182232538].[RepresentativeName]
  • Click the Run button, and the extracted details will be displayed. Now, click the Finish button.

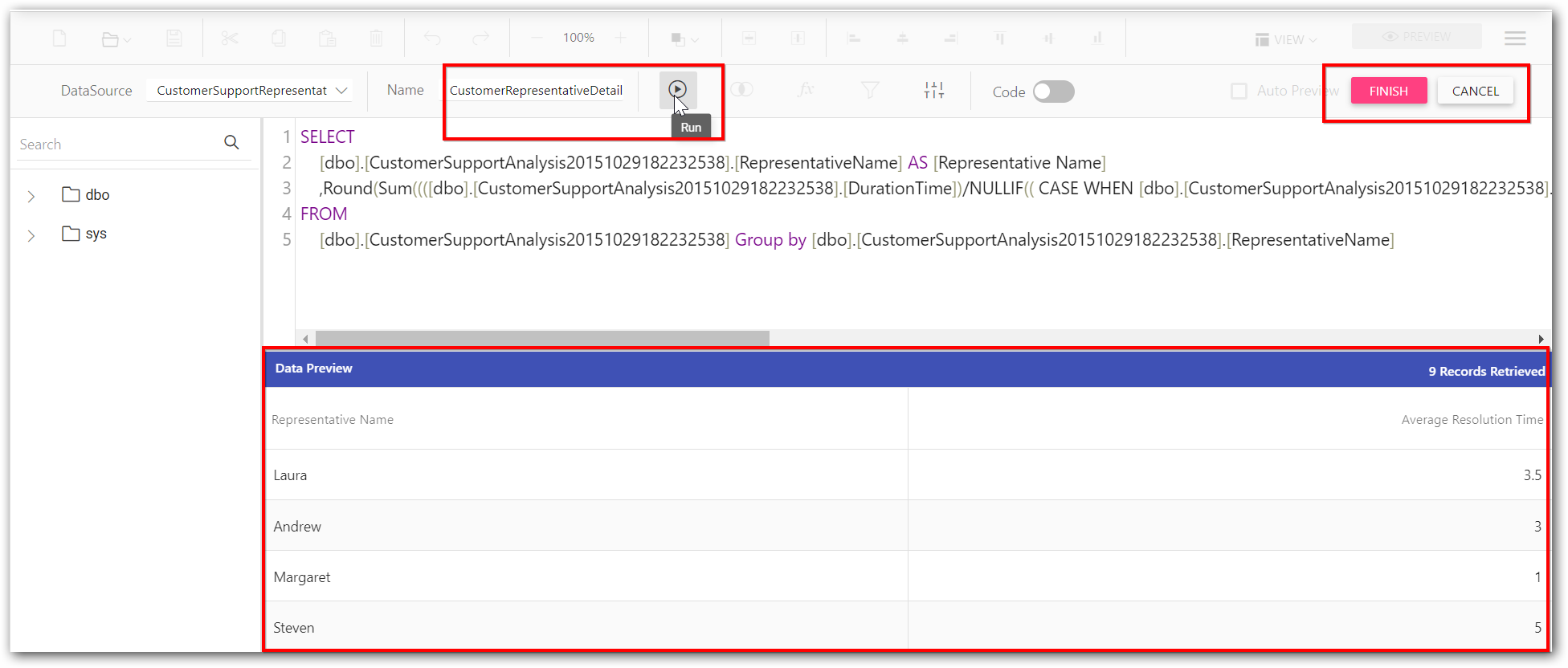

Extract and display the customer representative data
Extract and display the customer representative data

Everything about the data is now ready for us to design a report around it.

Display customer representative details in a table

In this section, we are going to map the customer representative data and display it using a Tablix report item.

  • Drag and drop the Table report item from the Widgets panel and click the settings icon of the table cell.
Table cell settings
Table cell settings
  • The Settings button opens a context menu and displays the available data set’s column names. Choose Representative_Name for the first cell and choose Average_Resolution_Time for the second cell. The data set will automatically be mapped for this table.
Mapping columns to the table
Mapping columns to the table
  • To edit the table header, click the settings icon in the header cell and then choose the Add Text option, which will display an Add Text dialog where you can provide your desired header text.
Edit table header text
Edit table header text
  • Click the Preview button to view the report with the mapped data. It will look like the following report:
Report with response times
Report with response times

Create indicator to represent the state of response time

Now, we are going to create an indicator report item and configure its value to represent the state of the response time for each customer representative.

  • Drag and drop the Indicator report item from the widgets panel into the third column of the table.
Drag and drop indicator into table
Drag and drop indicator into table
  • Click on the indicator cell and navigate to the Properties panel. Navigate to the Indicator Value properties section and open the advanced options by clicking the icon next to the Indicator Value Click the Expression button to configure the response time value for the indicator using the Expression Builder.
Indicator value configuration
Indicator value configuration
  • The Expression dialog will open for the indicator value. Now, map the average resolution time field (=Fields!Average_Resolution_Time.Value).
Indicator expression value
Indicator expression value
  • We are going to configure smiley indicator types for the following states to visualize the response times.
IconColorIndicator States
StartEnd
Face SmileGreen04
Face NeutralYellow48
Face FrownRed812

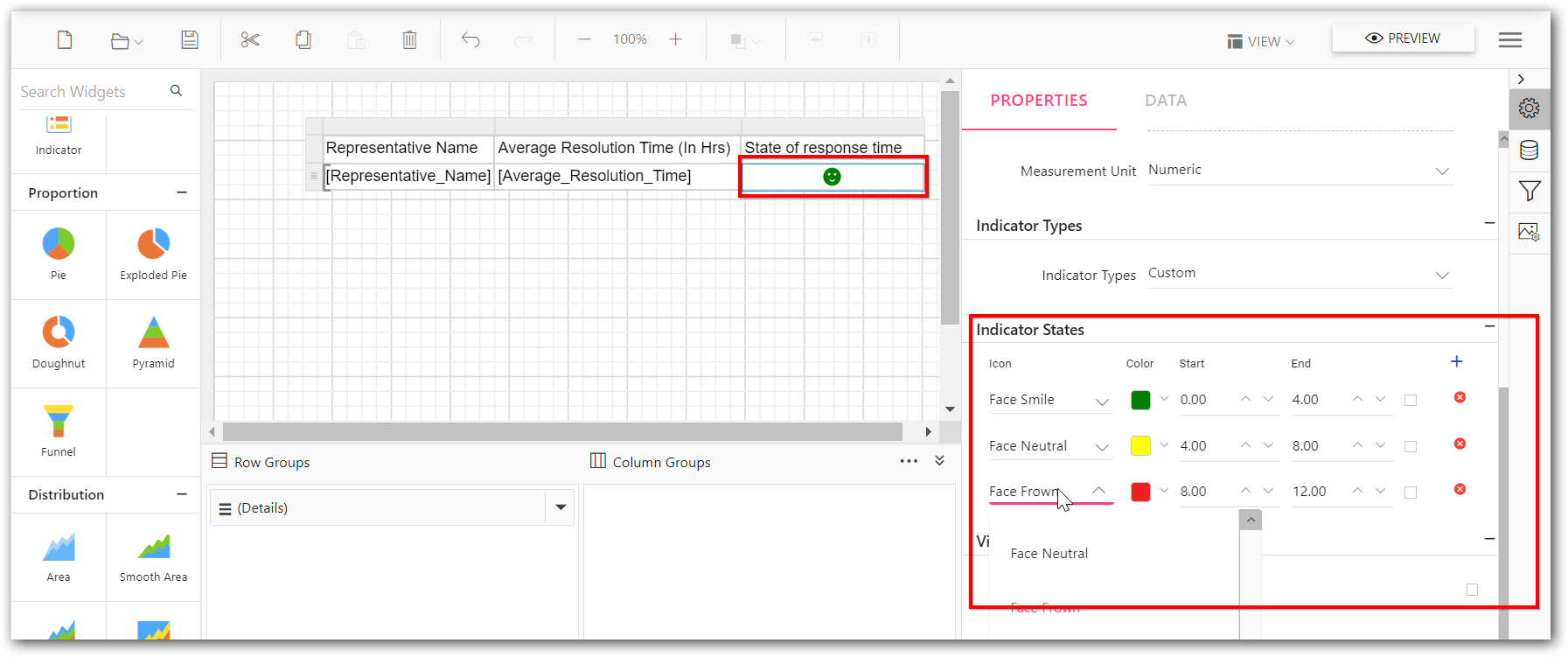

Indicator states for average response time
Indicator states for average response time
  • You can customize the table header background color, font-size, text alignment width, and height using the Properties panel. After making customizations, click the Preview button, and you’ll see the indicators visualizing the state of average response times.
Indicator report using smiley
Indicator report using smiley

Summary

In this blog, we learned how to create a simple report using Bold Report Designer, how to configure and map a data source for a tablix, and how to represent the state of values using the indicator report item.
